Pusher Rejector

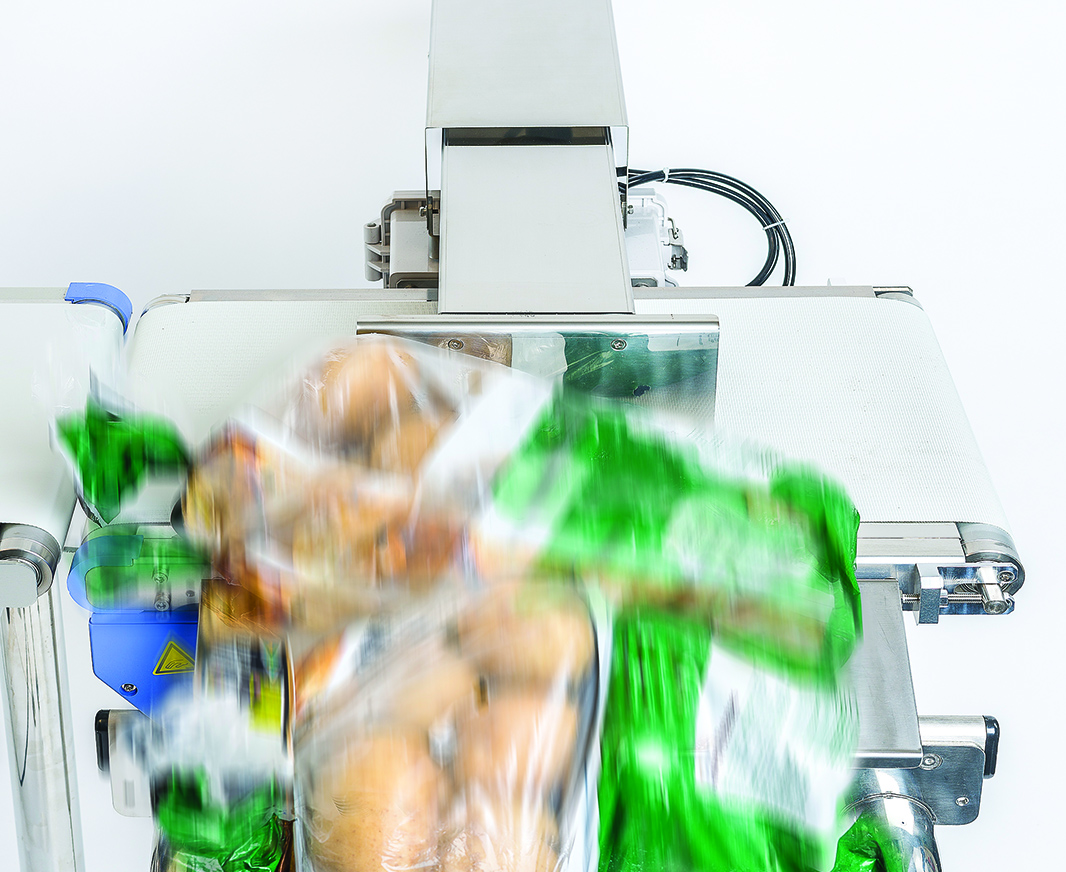

Rejected defective products are pushed off the production line by the action of a push arm attached to an air cylinder. This rejector module suitable for rejecting products in larger packages and bags.

  • Up to 60 pcs/min
  • Single Channel Rejector
  • Compatible with AD-4961-6K-3050

Features

Push mechanism provides linear thrust to discard non-conforming products.

  • Product Enquiry
  • Specification
  • Help & FAQ
  • Send us your enquiry

    NB: Thank you for your enquiry. We will endeavour to respond to enquiries in a timely matter, however due to increased security measures, it may take longer for us to respond to email accounts such as gmail, yahoo, hotmail (which may take up to 72 hours).

    Please fill in your details below

    * Required field
  • Model AD-4983-3050
    Conveyor belt width 300mm
    Conveyor length 500mm
    Screening capacity1 60pcs/min
    Air supply2 0.5MPa, 0.3 NL/time

    1 Depends on the shape and the condition of the product and installation environment.
    2 Please prepare an air compressor with a Φ6mm air tube to be connected to the filter regulator of the rejector.
