EZI-Check Intelligent 2kg Checkweigher

Are you required to ensure you supply correct weights to supermarkets and other clients? The EZI-Check™ inspection system is our new high speed in-line checkweigher that’s been specially designed to weigh, classify and segregate products based on weight. Its Japanese design provides high-level performance, accuracy and reliability, making it easily adaptable to existing lines.
This in motion checkweigher is versatile with dual range capacity and high repeatability. Perfect for applications in food & beverage and fresh fruits in clamshell packaging.

Our line of checkweighers are modular, easy to incorporate into your existing line and have the ability to process up to 320 pieces/min.

Enquire about how our in-line checkweighers can help you

Features

  • Capacity: 500g or 2000g | Dual Range
  • Resolution: 0.01g
  • Repeatability: 0.08g +/- | 0.18g +/-
  • Throughput: up to 320 ppm

Related Video

7bcdj2raWnA
AND Weighing

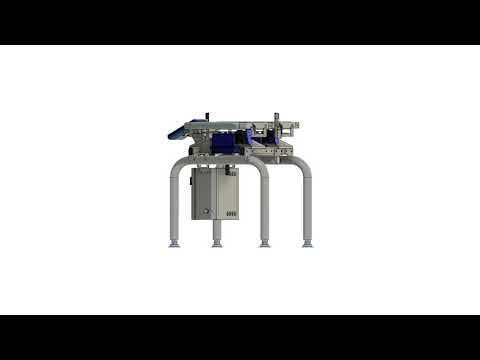

AD-4961 Series Checkweighers

1LsmgCzIieo
AND Weighing

A&D Checkweighing Simplified - tomato packing shed weighing & data capture!

d-I4Hcy9krk
AND Weighing

Checkweighing Simplified - a SWEET solution!

xPdQ76p6wvw
AND Weighing

A&D Checkweighing Simplified - Bags of Apples!

Additional Information

Best-in-class Precision
With a newly developed digital load cell and an ultra-high speed processing module, high level precision of 0.08g (3σ)*1 has been realized.
With this high accuracy checkweigher scale, you can minimize the giveaway of materials above the specified weight and contribute to reductions in production costs.
*1 For AD-4961-2KD-2035. Depends on the shape and the condition of the product and installation environment.

7 inch color touch panel
The display utilizes a high visibility touch panel color LCD with user friendly Graphic User Interface (audio guidance support function included).

Image import from USB
Product images can be quickly uploaded to the checkweigher from a USB flash drive, making product identification and upload fast and simple.

IP65
Protected from dust and water to IP65 standards. Hygienic design with the entire system washable.

Stores up to 1000 products
Products can be divided into 10 different groups, with up to 100 products able to be recorded within each group.

Lightweight and compact design
With its modular structure, the AD-4961 allows for rapid and simple installation or relocation.

Unique modular design
AD-4961 consists of four units: an infeed conveyor unit, a weighing conveyor unit, a control unit and a base unit, allowing fast and simple assembly.
In the case of system shutdown, you do not need to wait for a service engineer to respond to the issue.
Just simply replace the unresponsive module by yourself, so that you can shorten system downtime and maximize production efficiency.
Checkweigher
Optimization of weighing configuration
By inputting throughput (products per minute) or belt speed (m/min), optimal weighing conditions can be automatically set.
You can weigh products precisely without inputting various settings.

HISTORY FUNCTION
Operational history
The history of configuration changes can be recorded and displayed. Suitable for use in HACCP programs along with the weighing history function.
Users can be registered and their scope of permitted operations controlled according to 4 management levels.
[Operation]
[Supervisor]
[Quality Manager]
[Administrator]
By assigning each user to the appropriate level of access, inadvertent operations can be avoided.*2
*2 “Operator” is set as the factory default setting.
Checkweigh history
Weighing history
Weighing results are automatically recorded in a USB flash drive during weighing.
Output data: Date, time, group and product number, weight data and judgments.
USB memory
Approx. 6MB memory size is required for 8 hours operation at the maximum throughput (320pcs/min.)
Approx. 7GB memory size is required for 24hours 365days operation.
Check weighing history
Modbus communication
Equipped with Modbus RTU/Modbus TCP as standard.
With Modbus communication, seamless connection can be easily achieved.
Operations such as stopping and starting weighing, collecting data and changing product can all be set from an external device.
Check weighing modbus
Various inputs / outputs
Rejector output , alarm output, metal detector input, RS-232C, TCP/IP and USB interface are equipped as standards.
Storing data in a USB flash drive or outputting to a printer are also possible.

Graph printing to a printer
Histogram, X/R control charts and summary reports can be outputted to a PostScript printer via Ethernet.

Data summary
Various summary data such as histograms (frequency including defects), X charts, R charts, total summaries, etc., are available.
You can visually confirm fluctuation of weighing results and adjust your manufacturing machine accordingly.
Check weighing graphs
Histogram, control charts and summary reports
After weighing, press the PDF key on the summary display. A PDF report is outputted to a USB flash drive. The same reports can be printed out by pressing the PRINT key when a PostScript printer is connected to the checkweigher.
Check weighing summary
USB memory function
Weighing history and operation history are stored in a USB flash drive.
You can also output histogram, X/R control charts or summary data to a USB flash drive in PDF format.
A USB flash drive needs to be inserted before weighing.
*Please prepare a USB flash drive.

Specifications
Check weighing images

Accessories
Check weighing accessories
Rejectors
Check weighing accessoriesR
Unit supply for AD-4961-2KD-2035
We supply checkweigher modules individually, allowing you to build a weighing system which fits your production lines.
Check weighing accessories

  • Specification
  • Product Enquiry
  • Help & FAQ
  • Model AD-4961-2KD-2035
    Capacity 500 g /2,000 g
    Resolution 0.01g /0.1g
    Repeatability 0.08g / 0.18g +/-
    Max. Throughput 320 pcs/min
    Conveyor Belt width 200mm | 7.8 in
    Conveyor belt length 350mm | 13.7 in
    Conveyor Belt Material Urethane
    Belt Speed 15 ~ 120 m/min | 49 ~ 393 ft/min
    Max. Product Dimensions Length: 30 ~ 300 mm | 1 ~ 11.8 in Width: 200mm | 7.8 in
    Weighing Sensor Strain gauge load cell
    Display 7″ color touch screen
    Number of product registration 1,000 items  (10 groups x 100 items)
    Comunication Protocol Modbus TCP / RTU | RS-232 / 485 | TCP/IP (Postscript Printer) | USB
    External input 4 contact inputs
    External output 8 24v outputs
    Dust/Water resistence rating IP65
    Operational Temperature and humidity  -5 ~ 40 Celcius Humidity below 85%
    Power Supply Single Phase AC100-240V (+10% / -15%) 50/60 Hz 180 VA
    External Dimensions Length: 700mm / Width : 600mm / Height: 710-860 mm
    Weight Aprox. 35 kg
    Construction Material Stainless Steel
