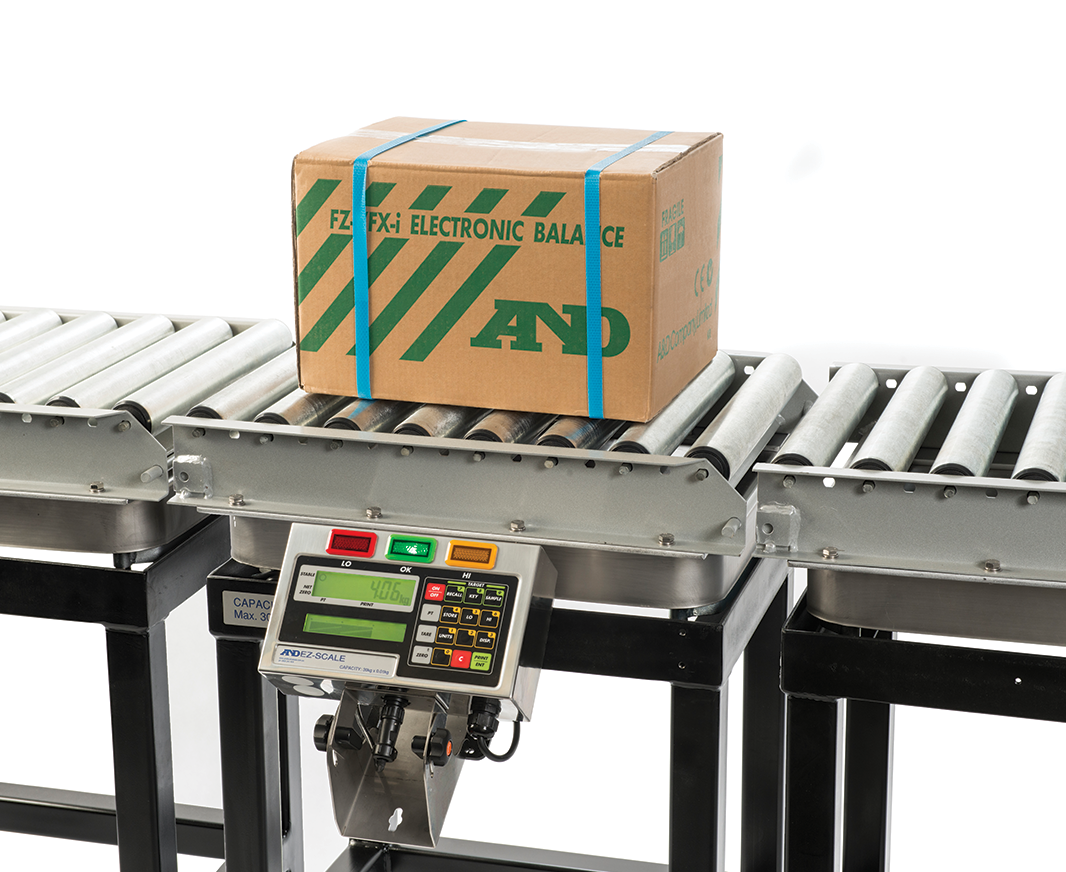

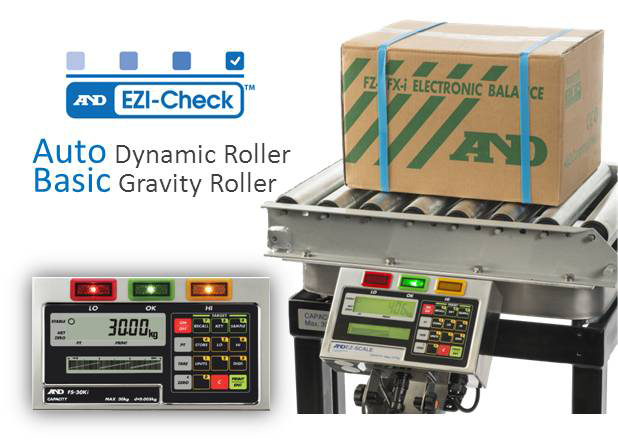

EZI-Check BASIC Carton Checking System

The EZI-Check freestanding gravity roller weighing Checkweighing systems can be incorporated into new or existing production lines allowing precise checking of cartons for missing or damaged products, all while maintaining a small footprint.

Our Carton Checking Systems are modular and easy to incorporate into your existing line.

Enquire about our Carton Checking System

Features

  • Proudly designed and manufactured in Australia
  • Capacity: 30kg / 60kg / 150kg
  • Resolution: 0.01kg / 0.02kg / 0.05kg
  • Dimensions: 600 (L) x 450 (W) x 900 (H)
  • Conveyor: Heavy duty steel gravity rollers
  • Indicator: FS-i, water & dust proof
  • Built in traffic lights HI / GO / LO
  • Fast Stabilisation – under 1 second
  • Suits manual roller lines
  • Stores up to 100 product IDs and targets
  • Wired or wireless PC Interface available
  • Fully automatic versions available
  • Specification
  • Product Enquiry
  • Help & FAQ
  • Model AD-4961-HC1826-MS
    Capacity 50 – 100 lbs
    Resolution 0.1 lbs
    Accuracy 0.02 lbs +/-
    Max. Throughput 65 pcs/min
    Conveyor Belt width 12 or 18 inches
    Conveyor belt length 26 or 36 inches
    Conveyor Belt Material Urethane
    Belt Speed up to 225 ft per minute
    Max. Product Dimensions Length: 25 or 35″ Width: 12 or 18 in
    Weighing Sensor Strain gauge load cell
    Display 7″ color touch screen
    Number of product registration 1,000 items  (10 groups x 100 items)
    Comunication Protocol Modbus TCP / RTU | RS-232 / 485 | TCP/IP (Postscript Printer) | USB
    External input 4 contact inputs
    External output 8 24v outputs
    Dust/Water resistence rating IP65
    Operational Temperature and humidity  -5 ~ 40 Celcius Humidity below 85%
    Power Supply Single Phase AC120V (+10% / -15%) 50/60 Hz 180 VA
    Construction Material Stainless Steel or Painted Mild Steel
  • Send us your enquiry

    Please fill in your details below

    * Required field
  • Where can I purchase this equipment?

    A&D Australiasia has a nation wide dealer network with outlets in all capital cities and in most regional locations. Call Toll Free 1800 241 434 for the location of your nearest dealer.

    My product requires service/repair, how do I arrange this?

    Contact the A&D Australiasia Service department on 08 8301 8120 or at [email protected] and they can advise on and coordinate your service requirement.
