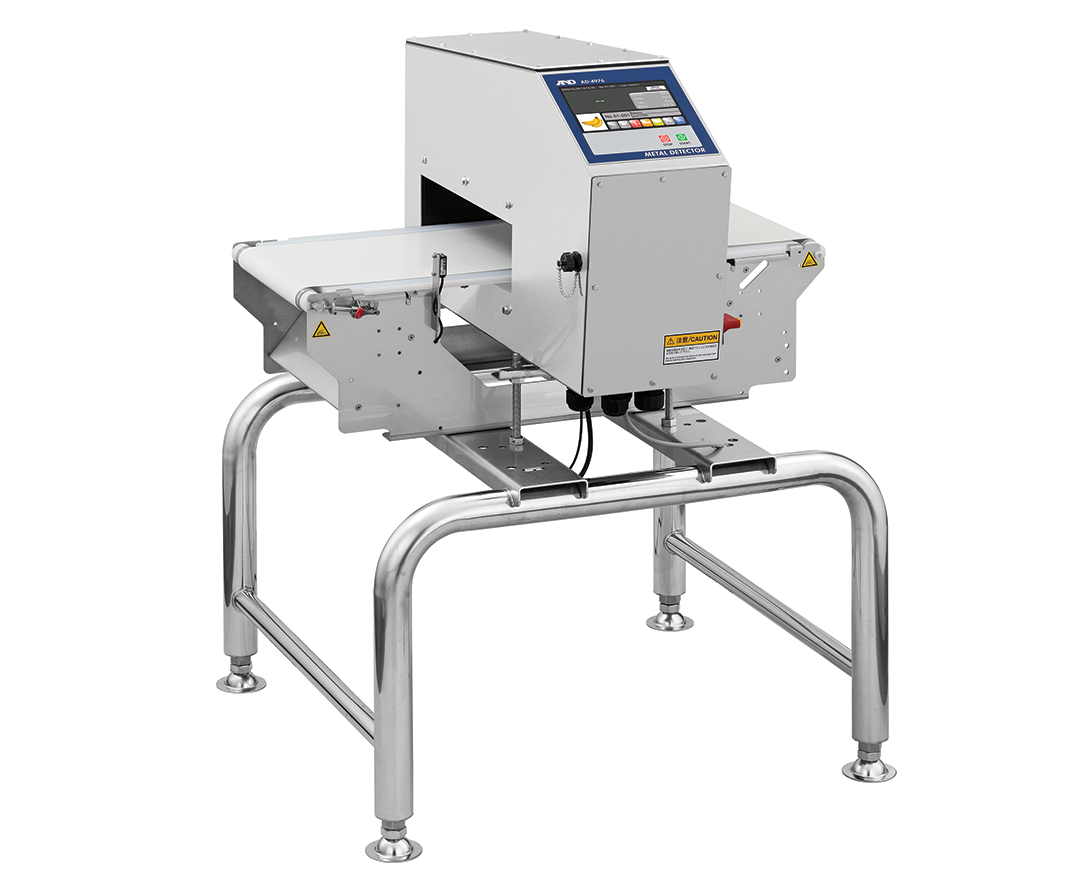

Metal Detector AD-4976 350/170 aperture

This system is suitable for packages that do not exceed 150mm in overall height.

  • Aperture Size: 350 mm (W) x 170 mm (H) | 13.7” x 6.6”

Ideal for production facilities with risk of metal contamination, our modular in-line metal detectors can detect ferrous, non ferrous and stainless steel pieces, as well as providing data capture to facilitate your QA reporting.

Enquire about how our in-line metal detectors can help you

Features

Our industrial grade in-line metal detection system can detect most ferrous, non-ferrous, stainless steel contaminants whilst also minimizing false rejects.
Our modular intelligent design coupled with our stainless steel construction and wash down rating, allows for easy maintenance and sanitary cleaning.

The AD-4976 Series Metal Detectors are all IP66 rated (SUS304), which makes them ideal for the food and beverage industry as well as nutraceutical and pharmacuetical markets.
Beyond sensitivity, this series offers stability, a user-friendly interface, high repeatability, and automated monitoring.

  • Protected from dust and water to IP66 standards. Hygienic design with the entire system washable.
  • Suitable for use in HACCP program.
  • Automatic sensitivity setting function.
  • Easy operation with 7-inch color touch panel.
  • Variable belt speed of 10-50m/min.
  • Standard Ethernet I/O allowing easy networking via LAN.
  • Inspection history function with the ability to record 100 inspection results in the internal memory.
  • Capacity can be increased by using USB memory.
  • Cleaning and maintenance is simple with a detachable conveyor belt.

Related Video

h9eTkfpKX-U
AND Weighing

AD-4976 Series Metal Detectors

2IMsp6pxMZU
AND Weighing

Food Grade Metal Detector In-line System

Ut2Qxa0uz5k
AND Weighing

Inspection System Inspecting Fresh Produce

Additional Information

With a new consumer focus on organic and fresh foods and exotic ingredients, supermarkets are increasingly turning to small-to-medium sized Australian food manufacturers for their products. While these contracts are lucrative, they also increase the demands on the manufacturers’ processes, necessitating faster production while still maintaining accurate portioning. Accurate metal detection inspection of products is critical: it ensures manufacturers are not supplying contaminated product and putting their customers’ safety at risk, which can lead to fines, loss of contracts,and more.

Modbus communication
Equipped with Modbus RTU/Modbus TCP as standard. With Modbus communication, seamless connection can be easily achieved. Operations such as stopping and starting weighing, collecting data and changing product can all be set from an external device.

metal detectors for food processing

Applications

A&D Metal Detectors can be used in a range of applications, including food and beverage, pharmaceuticals, and consumer packaged goods that do not have metallic packaging.

  • Ready made meals
  • Prepared foods
  • Meat, fish, and poultry
  • Bakery products
  • Cereals
  • Dairy foods
  • Confectioneries and snacks
  • Fresh produce – fruits and vegetables
  • Cosmetics
  • Pharmaceuticals and nutraceuticals

Enquire about how our in-line metal detectors can help you

  • Product Enquiry
  • Specification
  • Help & FAQ
  • Send us your enquiry

    NB: Thank you for your enquiry. We will endeavour to respond to enquiries in a timely matter, however due to increased security measures, it may take longer for us to respond to email accounts such as gmail, yahoo, hotmail (which may take up to 72 hours).

    Please fill in your details below

    * Required field
  • Model AD-4976-3517
    Aperture size Width: 350mm
    Height: 170mm
    Pass Height: 150mm
    Conveyor belt width 250mm
    Conveyor belt length 800mm
    Diameter of conveyor rollers 30mm
    Conveyor belt speed 10 – 50m / min
    IP Rating IP66
    Display 7-inch touch panel colour display
    2D graph display
    Menu with graphic display
    Audio guidance for operation
    Supports Modbus
    FTP server function
    History can be recorded in USB memory
    Accessibility to I/O box
    Maintenance Direct drive motor, quick lock conveyor assembly, continuous belt
    PLC interface (standard feature) Modbus RTU/Modbus TCP, FTP server function (LAN),
    External input Non-voltage contact input 4 points
    External output 6 (2 for the maximum 240V, and the 4 for the maximum 60V)
    Conveyor load capacity 5kg(~30m/min) 3kg(30~50m/min)
